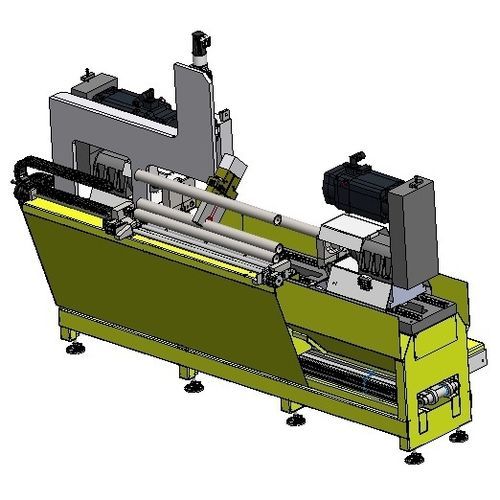

Electric chamfering machine SCM
for pipeautomatic

electric chamfering machine
electric chamfering machine
Add to favorites
Compare this product


Characteristics

Operation
electric
Applications
for pipe
Other characteristics
automatic
Power

8 kW
(10.88 hp)

Rotational speed

Max.: 1,500 rpm
(9,424.78 rad.min-1)

Min.: 300 rpm
(1,884.96 rad.min-1)

Chamfer width

Max.: 115 mm
(4.5 in)

Min.: 30 mm
(1.2 in)

Chamfer angle

Max.: 45 grad

Min.: 30 grad

Description

The SCM is developped for integration with every Bewo cuttling line, and suitable for tubes and bars. The machine consists of two chamfering units, that will be automatically set for the product length. With the application of quick exchange systems, the changeover time going to another diameter and or length is relatively short. The chamfering units are equipped with various cutting plates enabling chamfering of inside, outside of the tube, as well as making a precise flat edge. This all happens in one setup without the use of cutting fluid.
