Stainless steel orbital tube-cutting machine SCF Single

for aluminumautomatichydraulic

Overview

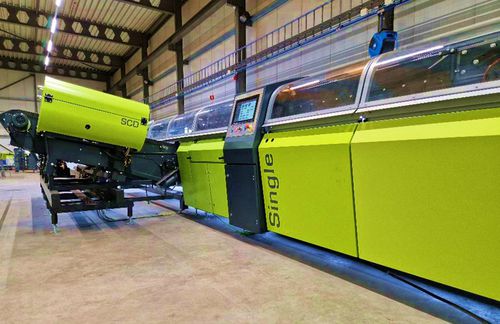

The Bewo SCF Single is an automatic tube and bar sawing machine engineered for maximum flexibility and short changeover times. Its universal clamping concept and servo-driven gripper feed enable consistent high throughput and tight length accuracy across varying product runs, making it suitable for small-batch and mixed production while keeping operating costs controlled.

Key features (summary)

• Brand: Bewo
• Model: SCF Single
• Universal clamping system
• Gripper feed (servo)
• Single / double cutting modes
• Typical output (single cut): 1,500 p/h (example: Ø15 mm, L 150 mm)

Gripper feed advantages
The servo-controlled gripper actively clamps and positions material, providing a precise and stable feed independent of material type, surface condition or contamination. Compared with roller feeds this reduces component wear, increases process reliability and lowers maintenance and operating costs.

Materials processed

• Seamless tubes: round, square, rectangular
• Welded precision tubes
• Chromed steel tubes
• Welded cold-drawn tubes
• High-pressure pipes
• Solid bars: round, square, rectangular, flat
• Carbon steel, alloy steel, stainless steel, non-ferrous materials

Operational advantages

• Flexible production: length and diameter changes without manual retooling
• Process support: sawing advice with calculation of achievable production capacity
• High length accuracy via servo-driven product gripper
• Integration-ready: deburring, washing, marking and sorting can be combined under one control system

Additional functional notes
The saw clamps and cuts a wide range of profiles without changing tools, stops or guides. Separation pins and dedicated software enable reliable feeding of small or flexible diameters. The saw clamp covers approx. Ø8–Ø80 mm without tool change (depending on configuration). Post-processing options and sorting can be integrated for automated end-to-end workflows.

Technical specifications (excerpt)

• Brand: Bewo
• Model: SCF Single
• Multiple cut min–max: 1–2 p/cut
• Max. saw blade diameter: 400 mm
• Sawing servo motor: 9 kW
• Cutting speed: 20–250 m/min
• Transport system: gripper feed, servo
• Clamping force: hydraulic
• Clamping setup: universal
• Accuracy Ø < 25 mm: 0.1 mm
• Material type: steel / stainless steel / non-ferrous
• Minimum starting length: 3,000 mm
• Maximum starting length: 7,350 mm
• Transport weight (typ.): 50 kg
• Bundle loader capacity: 3,000 kg
• Bundle Ø: 650 mm
• Round tube range Ø: 15–80 mm (standard)
• Small Ø pack: >6 mm (option)
• Max. square profile: 80×80 mm
• Rectangular min–max: 15×10 mm – 85×60 mm
• Minimum wall thickness: 0.6 mm
• Solid max Ø: 35 mm
• Minimum cutting length: 10 mm
• With deburring: 150/100 mm (depending on configuration)
• With washing: 200 mm (depending on configuration)
• Max. length: 6,000 mm
• Product weight (typ.): 20 kg
• Maximum deburring length: 4,000–5,000 mm (depending on configuration)
• Max. output (indicative): up to 1,800 p/h
• Reference values only: final data project-specific
