Hydraulic gear pump BEL seriessteelstandardradial
Add to favorites
Compare this product
Characteristics
- Type
- gear
- Material
- steel
- Other characteristics
- standard, radial, flange, bidirectional
- Pressure
Max.: 4,500 psi
Min.: 600 psi
- Flow rate
Max.: 80 us gal/min
(302.83 l/min)Min.: 5 us gal/min
(18.93 l/min)- Speed
Max.: 2,500 rpm
(15,708 rad.min-1)Min.: 5 rpm
(31 rad.min-1)- Weight
Max.: 17.7 kg
(39.02 lb)Min.: 12.8 kg
(28.22 lb)- Fluid temperature
Max.: 80 °C
(176 °F)Min.: -25 °C
(-13 °F)
Description

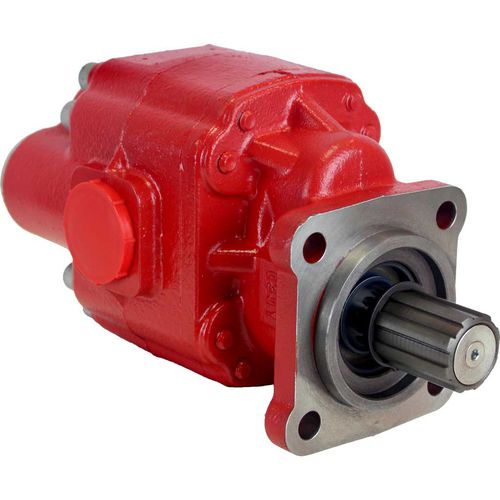

The BEL series is the large range for Bezares gear pumps, covering flows between 50 and 120 L/min. The BEL pump is bidirectional, and its lateral and rear ports facilitate installation in the vehicle.
This series offers high performance and high efficiency. It is manufactured in a cast steel casing with a robust design and high-quality internal components. It can be configured with ISO 4 or SAE B 2/4 hole flanges. Additionally, it is possible to choose from various types and sizes for GAS/BSP, SAE, or NPT ports and threads. Contact us today for more information on how the BEL pump can optimize the performance of your hydraulic system.
