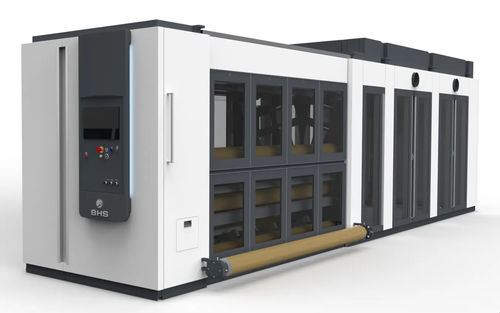

Piezo inkjet printing machine MCP

for cardboardmonochromehigh-speed

Overview
Corrugated board is increasingly used as a data carrier for brand content and for documenting the supply chain via dynamic QR codes. Single-pass monochrome printing enables inline data and brand applications at corrugator speeds.

Product description
The BHS Jetliner Monochrome (MCP) is a single-pass inkjet printing system designed for new and retrofit corrugators. Its modular footprint allows installation in limited spaces while enabling printing across the full 2,800 mm working width at production speeds. The system inherits key technologies from the BHS Jetliner Xceed (XC) to deliver precise, low-waste and largely autonomous printing processes with reduced printhead lifecycle costs.

Key features

• One-color (black) single-pass inkjet digital printing
• Print speed: up to 400 m/min (1,300 ft/min)
• Working width: 2,800 mm (110")
• RSR® inline printing process technology
• Industry-proven piezo printheads
• Water-based pigment ink system (EuPIA, Swiss Ordinance and Nestlé compliant)

Technical specifications

• Printing mode: single-pass, monochrome (black)
• Top speed: up to 400 m/min (1,300 ft/min)
• Working width: 2,800 mm (110")
• Printing technology: RSR® inline printing process
• Printheads: industry-proven piezoelectric printheads
• Ink system: water-based pigment inks compliant with EuPIA, Swiss Ordinance and Nestlé guidelines
• Design: modular for retrofit and tight-space installations
• Operational benefits: print at corrugator speeds, full-width utilization, minimized printhead lifecycle costs
