UPS with supercapacitor UPSIC-2403

24 Vindustrialmedical

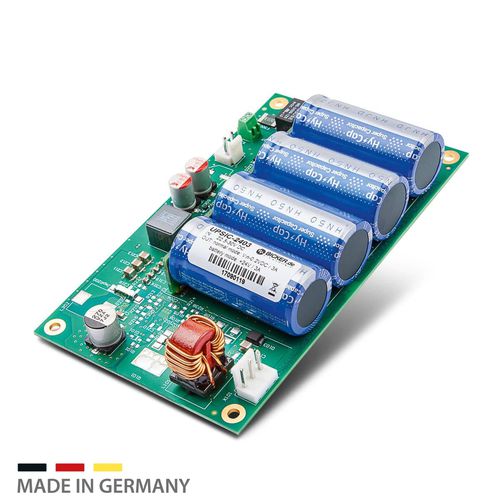

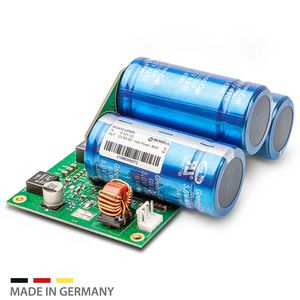

Bicker UPSIC-2403 DC UPS with maintenance-free Supercaps Compact DC-UPS 72W / 24VDC 3A / Supercap / Open Frame The compact UPSIC-2403 protects the connected loads safely against fluctuations and interruptions of the supply voltage. Four maintenance-free supercaps ensure an extremely high cycle strength and short charging time. Through the intelligent "power-sharing", the source does not need to be oversized to load the supercaps. In addition, the UPSIC-2403 provides an active polarity protection, a power fail signal via a relay contact and a free software with timer function. Equipped with high-quality 3 Volt Supercaps (4x 100F capacity), the DC UPS modules are fully charged in a maximum of 60 seconds and are designed for fanless 24/7 continuous operation in the extended temperature range from -20 to +70°C. For uninterruptible DC power supplies, there are absolutely maintenance-free long-life Supercaps (ultra-capacitors) available as highly efficient and particularly long-lasting energy storage devices with more than 500,000 charge and discharge cycles in the area of short and medium bridging times. Under comparable operating conditions, Supercaps have a service life that is up to ten times longer than that of classic lead-acid batteries. • Regulated voltage at backup • Supercaps for energy storage • Maintenance-free • High cycle stability > 500 000 • Charge time <60 sec at maximum charge current • Extended temperature range -20...+70 °C • Compact design • Active reverse polarity protection • Power Fail signal via relay, RS232 connection • Intelligent charge sharing
