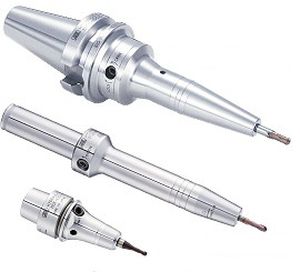

Milling hydraulic chuck HYDRAULIC CHUCK series

milling hydraulic chuck
milling hydraulic chuck
milling hydraulic chuck
milling hydraulic chuck
milling hydraulic chuck
milling hydraulic chuck
Add to favorites
Compare this product


Characteristics

Application
milling
Rotational speed

20,000 rad.min-1 (3,183 rpm)

Description

Integral sleeve structure that makes the difference for precision and rigidity. Integral structure that does not use the O-ring Compared to the two-piece structure sealed with O-rings, the Hydraulic Chuck gains stable precision and high rigidity. Further, the runout accuracy is greatly improved by short projection length and the dual oil pressure points. Short projection length It is suitable for machining processes that require high runout accuracy, for burnishing drills/reamers, ball end mills, end mills, diamond reamers and grinding tools.

Catalogs

No catalogs are available for this product.

See all of BIG DAISHOWA‘s catalogs
