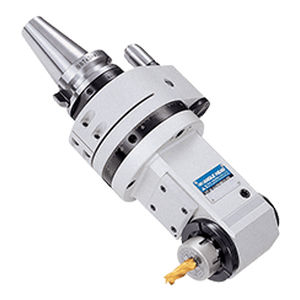

90° angle head New Baby Chuck Type

fixedfor machining unitsmilling

Angle Heads fixed with a 90° spindle angle, combine vertical and horizontal operations on one machine. They increase productivity by easily changing the angle of the cutter while utilizing the original workpiece setup. This improves overall accuracy and eliminates the potential for error created by multiple setups. Coolant through the spindle variation of the Build-Up and HMC type angle heads allow for 1,000 psi coolant through the machine tool spindle and out an adjustable port above the cutting tool.The compact design minimizes overhang adding rigidity and strength, as does the standard BIG-PLUS® shank for different interfaces. Three AG90 types available: NBS Type, HMC Type and Build-Up Type. New Baby Chuck Type Angle Heads New Baby Chuck Type Angle Heads utilize the outstanding rigidity and accuracy of the New Baby Chuck and New Baby Collet, producing high precision with less runout. HMC Type HMC Type Angle Heads offer the combination of power and large diameter tool capacity, using BIG KAISER’s Hi-Power Milling Chuck system. Build-Up Type Angle Heads Build-Up Type Angle Heads can be fitted with a wide range of adapters to cover most machining requirements. Small Bore Type The Slender Drive or small bore type angle head is designed to get into narrow spaces with limited clearance. Compact Type Compact type Angle Heads are approximately 25% lighter when compared with standard units. The case and head are substantially reduced. Face Mill Type The Face Mill Type Angle Head allows for ultra heavy duty face milling applications.
