Belt conveyor TEL 2 series

electric drivefor the food industryflexible

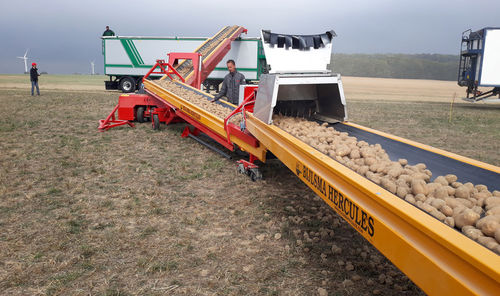

The Bijlsma Hercules telescopic conveyors are a very flexible link when sorting your crops, because they are adjustable in length and because the two conveyors can be pivoted to each other at any desired angle. The falling height between the two conveyors can be reduced to a minimum with a threaded adjuster on the travelling carriage. Your product is therefore in good hands with our telescopic belts. Extremely manoeuvrable A sophisticated tandem wheel construction makes the telescopic tires extremely manoeuvrable. One person can relocate the conveyors smoothly and easily or adjust the height. The length is adjusted by means of a hand winch. The switchbox is mounted on the travelling carriage makes it possible to operate them from two sides. Since both conveyors are electrically connected to each other via a special cable guide, only one cable is needed for the power supply. STANDARD EQUIPPED WITH • Steering rod at the front wheels with which the machine can be manoeuvred easily into the smallest corners. • Round input funnel for easy set-up, so that the product can be deposited onto the machine from each side. • Adjustable height between the first and second belt, for minimum drop height. • Centrally placed control box for ergonomic operation. • Two swivel castors and two fixed rubber castors, all Ø 200 mm. • Castor wheels with brakes for stable support and easy movement of the machine. • Height adjustment with pin/hole connection, so that the machine can be set to the correct height. • BLC Line Module System.
