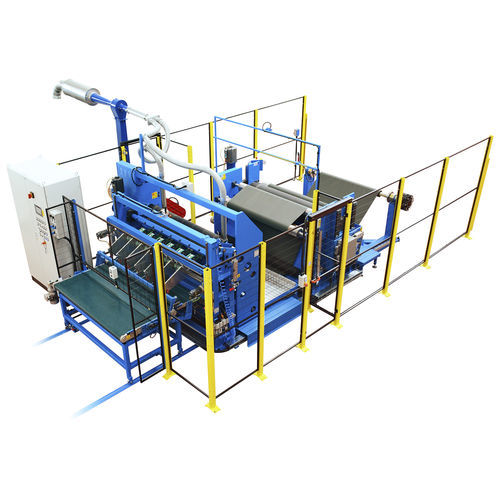

Jumbo sheet slitter TF3

for abrasive paperfor abrasive clothcoated abrasive

The TF3 jumbo sheet cutter is designed to cut sheets of abrasive paper and cloth out of a abrasive jumbo roll. TF3 is a high-performance machine, and can cut and stack large quantities of sheets. Technical Data - Working widht 1650 mm - Unwinder for jumbos up to 1250 mm diameter - Cutting length can be regulated via touch screen - Servo motor feeding - Single knife holders easily displaceable for longitudinal cut - Cross cut performed by a fly cutter - Productivity up to 120 cuts/min - Automatic stacking of the sheets - Ejection via motorized carpet Options - Automatic alignment on unwinder - Flexing station with spiral and straight bars, to be installed between unwinder and cutter - Size and Power (with flexing station and perimetric protections) - Overall machine dimensions: 7.3 x 4.1 x 2.6 m - Approx. weight: 10,000 kg - Installed power: 18 kW - Air consumption: 1,200 Nl/h
