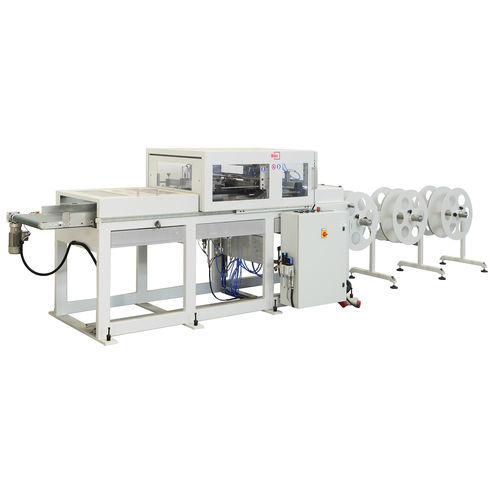

Sheet slitter TF2

for abrasive paperfor abrasive clothcoated abrasive

The sheet cutter type TF2 is designed to cut sheets of abrasive paper and cloth out of a abrasive roll. TF2 is a machine for a medium production: it can cut small quantities as well as a series of sheets. Technical Data - Double unwinder for 230 mm wide rolls - Maximum diameter of the roll 600 mm - Cutting length can be regulated from 100 to 300 mm - Pneumatic feeding - Shear cut with round knife on straight counterknife - Productivity: up to 30 sheets/min (280mm x 230mm) - Automatic ejection of the sheets Options - Stacking device with automatic stop when preset number of sheets is reached Size and Power - Overall machine dimensions: 3.5 x 1.2 x 1.6 m - Approx. weight: 700 kg - Installed power: 0.5 kW
