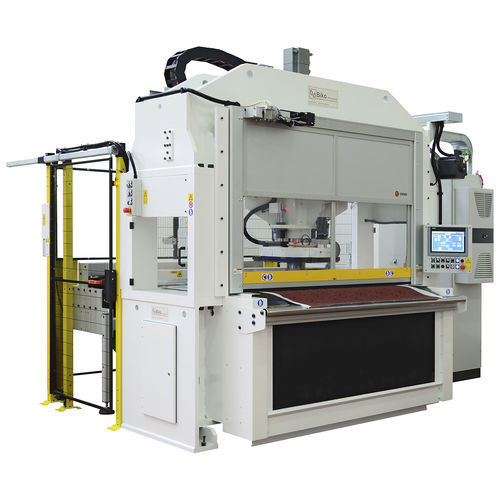

Knife cutting machine EDP-C

diefor plasticsfor fabrics

The Die Cutting machine type EDP-C represents, in a compact size, the highest automated system to cut a variety of materials starting from jumbo rolls or sheets. Feeding of material is automatic and managed by a transportation conveyor running together with a beam holder. Machine power permits to cut various sizes. Technical Data - Compact size, fully automatic machine - Operator has immediate access to cutting zone - Short feeding path, suitable for frequent product change - Useful material width up to 1,650 mm - Feeding system by pressing beam working against motorized conveyor - Punching system mounted on traveling head covering the whole board width - 25 - 60 tons of cutting force - Able to cut more web layers at the same time (up to 5 layers) - 600 x 600 mm cutting tool mounting board - Head displacement by servo motor for accurate cutting tool position - Scrap material, from hole punches, is automatically collected and vacuumed from the cutting tool - A dedicated software manages the whole process and a touch screen allows the operator to change all the settings - The touch screen gives the possibility to optimize the position of the cutting footprints so as to minimize waste material as much as possible Options - Different cutting tonnage - Cutting head rotating on its axis, for cutting shapes different than discs - Cutting tools of various shape and size - Automatic disc stacking system - Waste winder - Unwinders
