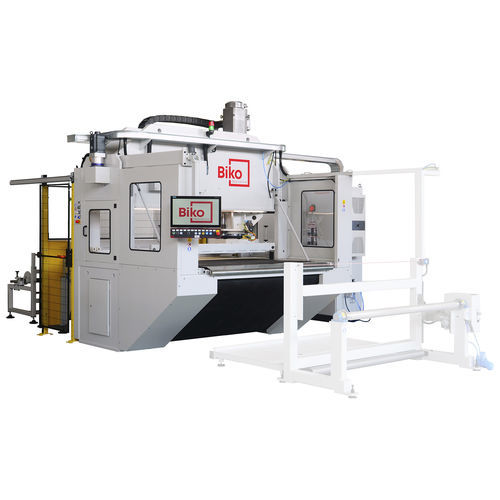

Knife cutting machine EDP-W

diefor plasticsfor PUR

The Die Cutting machine type EDP-W represents the highest automated system to cut a variety of materials starting from jumbo rolls or sheets. Feeding of material is automatic and managed by a transportation conveyor running together with a beam holder. Machine power permits to cut a wide variety of materials Technical Data - Useful material width up to 2050 mm - Feeding system by pressing beam working against motorized conveyor - Punching system mounted on traveling head covering the whole board width - 25 tons of cutting force (45 and 60 tons also available) - Able to cut more web layers at the same time (up to 5 layers) - 600 x 600 mm cutting tool mounting board - Head displacement by servo motor for accurate cutting tool position - Scrap material, from hole punches, is automatically collected and vacuumed from the cutting tool - A dedicated software manages the whole process and a touch screen allows the operator to change all the settings - The touch screen gives the possibility to optimize the position of the cutting footprints so as to minimize waste material as much as possible Options - Different cutting tonnage - Cutting head rotating on its axis 180° - Automatic Die Change - Unwinders for Jumbo Rolls - Automatic stacking system - Automatic Pick & Place parts collection - Waste Winder Size and Power (EDP-W-1650 model, with 2 unwinders and stacking system) - Overall machine dimensions: 7.0 x 7.1 x 3.0 m - Installed power: 18 kW - Air consumption: 200 Nl/h
