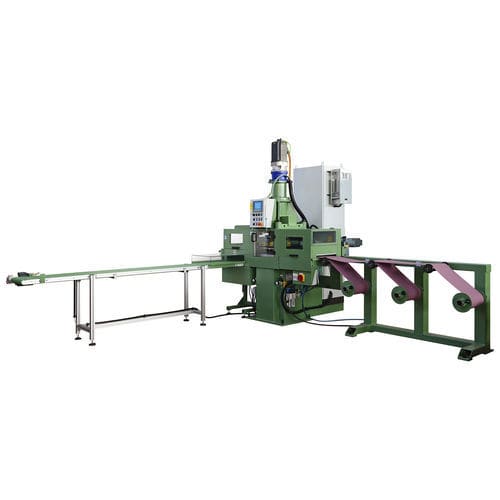

Die cutting machine EDP-N

coated abrasivesheetNC

The Die Cutting machine type EDP-N represents the highest automated system to cut coated abrasive discs starting from narrow rolls. Feeding of material is automatic and managed by a double set of motorized conveyor belts. Machine power permits to cut discs of various sizes and with a variable number of holes. Supported materials go from very thin and light paper to heavy coarse grit web. Depending on the disc size, number of holes and material type, more material layers can be cut at the same time. Technical Data - Useful material width 310 mm - Feeding system by pressing beam working against motorized conveyor - 25 tons of cutting force - Able to cut more web layers at the same time (up to 3 layers) - 300 x 300 mm cutting tool mounting board - Unwinding station for 3 rolls up to 500 mm diameter - Scrap material, from hole punches, is automatically collected and vacuumed from the cutting tool - Automatic cut shapes stacking, number of parts on stack settable via touchscreen - A dedicated software manages the whole process and a touch screen allows the operator to change all the settings Options - Cutting tools of various shape and size Size and Power - Overall machine dimensions: 4.2 x 3.3 x 2.6 m - Approx. weight: 2,000 kg - Installed power: 20 kW - Air consumption: 12 Nl/h
