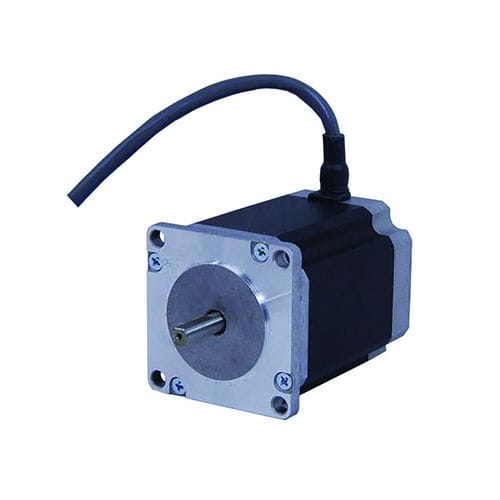

DC motor MTR-DC23W-598D-Selectronically commutatedstepper24 V
Add to favorites
Compare this product
Characteristics
- Type
- DC, electronically commutated, stepper
- Voltage
- 24 V, 48 V
- Protection class
- IP65
- Other characteristics
- high-torque, NEMA 23, NEMA 34, standard, RS-485, RS-232
- Intensity
Max.: 10 A
Min.: 0.5 A
- Torque
Max.: 1,260 Nm
(929.328308 ft.lb)Min.: 78 Nm
(57.529848 ft.lb)
Description
Bimba’s family of DC stepper motors are available in NEMA 23 and NEMA 34 sizes and are designed to work optimally with Bimba DC Stepper Drives. With features that include high torque, high bus voltage and microstepping performance, and versions that accept an encoder to the rear shaft provides unparalleled DC stepper motor performance.
2-phase hybrid step motor
High Torque Design
Series or Parallel wiring
Class B Insulation system
Standard NEMA 23 and NEMA 34 dimensions
RoHS
