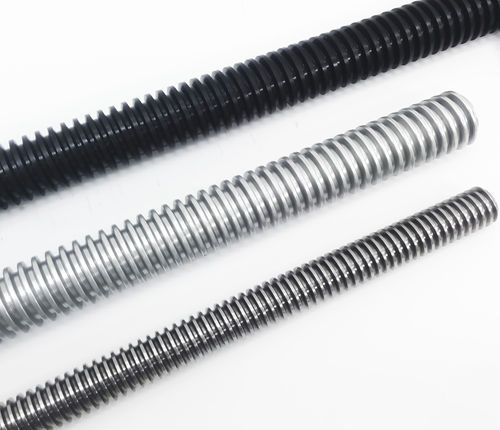

Stainless steel ball screw TRAPEZOIDAL THREADED BARS

rolled

BIMECCANICA SRL produces threaded bars made for removal with precision machine tool, each single production lot is controlled in order to guarantee the quality of our product; we can guarantee pitch accurancy and linearity of the screws. TECHNICAL FEATURES: pitch accuracy +/- 0.1 to 300 mm Precision class for coupling 7e linearity 0.1 / 0.2 mm in 1000 production of right hand scews and left hand screws Threaded bars can be supplied on request with nitriding treatment Nitox MATERIALS: Steel 11SMnPb37 Steel 36SMnPb14 Steel 39NiCrMo3 hardened and tempered PRODUCT RANGE - Ø (in mm) x STEP (in mm) TR 10x2 TR 10x3 TR 12x3 TR 14x3 TR 14x4 TR 16x4 TR 18x4 TR 20x4 TR 24x5 TR 25x5 TR 26x5 TR 28x5 TR 30x6 TR 35x6 TR 40x7 TR 45x8 TR 50x8 TR 55x9 TR 60x9 TR 70x10 TR 80x10 TR 90x12 TR 100x12 On request we can also supply special threaded bars with different pitch than standard.
