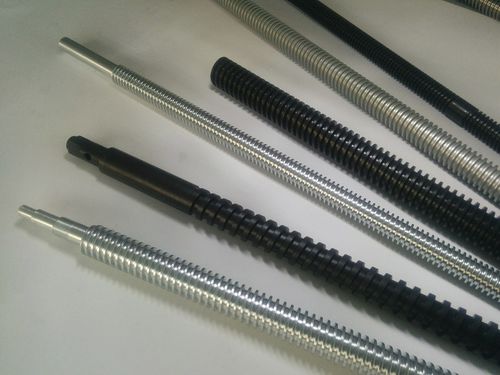

Custom lead screw CUSTOMIZED TRAPEZOIDAL SCREW WITH HARDENED PROFILE
aluminumsteelwith nut

custom lead screw
custom lead screw
custom lead screw
custom lead screw
custom lead screw
Add to favorites
Compare this product


Characteristics

Type
custom
Material
aluminum, steel
Other characteristics
with nut, high moving speeds
Diameter

Max.: 100 mm
(3.937 in)

Min.: 10 mm
(0.3937 in)

Description

BIMECCANICA SRL can provide its threaded bars with the following treatments: - NITRIDING NITOX (black) on 36SMnPb14 steel bars with surface hardness HV450 resistance at 250 / 300h salt spray. - Anodizing (silver) on bars of aluminum alloy with surface hardness HV300 resistance 800 / 1000h salt spray. - ZINC PLATED (cold white) on all of the standard range steels BIMECCANICA SRL produces exclusively threaded bars made for removal with precision machine tool, each single production lot is controlled in order to guarantee the quality of product; we can guarantee pitch accurancy and linearity of screw . TECHNICAL FEATURES: accuracy on the pitch +/- 0.1 to 300 mm Precision class for seventh mating linearity 0.1 / 0.2 mm in 1000 production of right hand scews and left hand screws
