Climate chamber WIC 2

humiditytemperaturestability

Product description

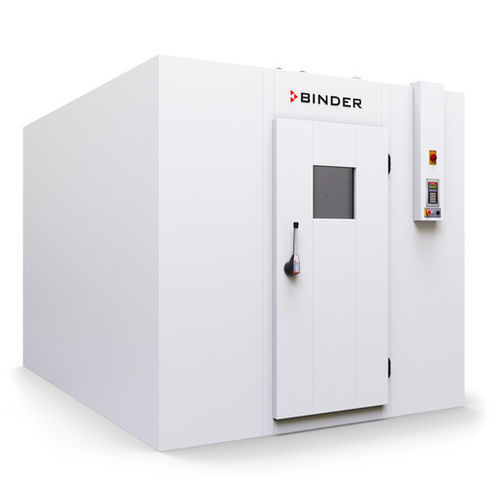

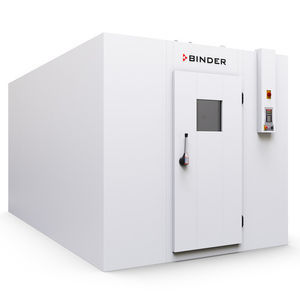

The walk-in stability chamber WIC 2 is designed for pharmaceutical stability testing and controlled-environment applications. The chamber maintains required temperature and humidity conditions across a wide working range to support regulatory and internal stability protocols.

Benefits

• Stable and uniform test environment
• Compliant with pharmaceutical equipment requirements (ICH Q1A)
• Corrosion-resistant construction for long service life
• User-friendly operation and maintenance access
• Uses an environmentally preferable refrigerant (GWP = 547)
• Maintenance can be performed with minimal disruption to climate control
• Suitable for pharma industry stability testing
• 3-year warranty

Important characteristics

• Relative humidity accuracy: ± 2.5 %
• Temperature accuracy: ± 1.5 °C
• Ductwork for uniform air distribution
• Highly insulated room panels, U value: 0.21 W/m2K (100 mm PU foam)
• LED lighting with motion detector
• High-quality room elements, made in Germany
• Interior fully stainless steel
• Service accessibility from exterior
• Room elements: galvanized sheet steel, polyester coated (white similar to RAL 9010); stainless-steel interior surfaces
• Floor overlay: chrome-nickel steel, pattern-rolled 5WL
• Surface load capacity: 50,000 N/m2

Options, accessories & services (selection)

• Temperature and humidity mapping: 13 temperature points + 1 central humidity point (with certificate)
• Installation and commissioning
• Access ports with silicone plugs (30 mm and 50 mm; up to 5 ports; positions per customer specification)
• Maintenance service: inspection, functional tests and calibration of a user-specified test temperature (certificate option available)
• Qualification documentation (IQ/OQ) — hard copy or PDF
• Monitoring system for recording temperature and humidity; sensor cable length 1 m; compatible with APT-COM™ Multi Management Software
• Accessories examples: ramp for WIC models; shelving sets for WIC 2; PVC vertical blind

Technical specifications (selected)

• Article Number: 9800-0012
• Designation: WIC2-230V
• Model option: Standard
• Temperature range with humidity: 5...50 °C
• Humidity range: 20...90 % RH
• Temperature uniformity at 25 °C / 60 % RH: 1.5 ± K
• Temperature uniformity at 40 °C / 75 % RH: 1.5 ± K
• Temperature fluctuation at 25 °C / 60 % RH: 0.5 ± K
• Temperature fluctuation at 40 °C / 75 % RH: 0.5 ± K
• Humidity fluctuation at 25 °C / 60 % RH: 2.5 ± % RH
• Humidity fluctuation at 40 °C / 75 % RH: 2.5 ± % RH
• Rated voltage: 230 V
• Power frequency: 50 Hz
• Nominal power: 2.7 kW
• Unit fuse: 16.0 A
• Phase (nominal voltage): 1~
• Interior volume: 18.523 L
• Net weight (empty): 981 kg
• Energy consumption at 40 °C / 75 % RH: 1,140 Wh/h
• Housing width (net): 2,600 mm
• Housing height (net): 2,470 mm
• Housing depth (net): 3,600 mm
• Interior width: 2,400 mm
• Interior height: 2,270 mm
• Interior depth: 3,400 mm
• Unit doors: 1
