Laboratory incubator WIC 3forced convectionrefrigeratedcooling
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory
- Convection
- forced convection
- Temperature control
- cooling, refrigerated, ventilated, with ventilation system, constant temperature
- Configuration
- fixed
- Other characteristics
- with humidity control
- Temperature
Min.: 5 °C
(41 °F)Max.: 50 °C
(122 °F)- Capacity
24,516 l
(6,476.44 gal)- Width
2,600 mm
(102.36 in)- Height
2,470 mm
(97.24 in)- Depth
4,700 mm
(185.04 in)
Description
Product description

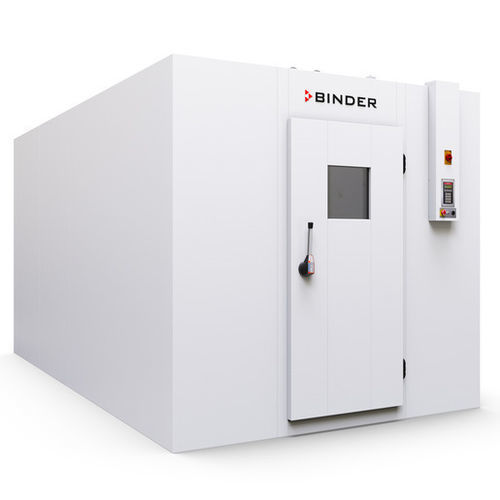

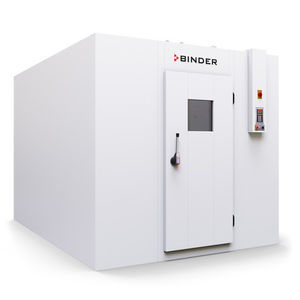

The WIC 3 walk-in stability chamber is designed for pharmaceutical stability testing according to ICH (Q1A). It maintains controlled conditions across a wide temperature range and relative humidity to ensure repeatable test environments for long-term and accelerated studies.
Benefits
Important characteristics
Technical specifications
The WIC 3 walk-in stability chamber is designed for pharmaceutical stability testing according to ICH (Q1A). It maintains controlled conditions across a wide temperature range and relative humidity to ensure repeatable test environments for long-term and accelerated studies.
Benefits
- Stable and uniform controlled environment for stability studies
- Full compliance with ICH (Q1A) pharma equipment requirements
- Corrosion-resistant construction for extended service life
- Intuitive operation and service accessibility
- Environmentally friendly refrigerant (GWP = 547)
- Maintenance can be performed with minimal disruption to conditioning
- Designed to meet pharmaceutical industry specifications
- 3 years warranty
Important characteristics
- Relative humidity accuracy: ± 2.5%
- Temperature accuracy: ± 1.5 °C (spatial) / ± 0.5 K (point)
- Ductwork for optimized air distribution
- Highly insulated room panels, U-value: 0.21 W/m²K
- LED lighting with motion detector
- High-quality room elements, made in Germany
- Interior fully stainless steel
- Exterior service accessibility
- Room elements: Galvanized sheet steel, polyester coated, white (similar to RAL 9010); interior surfaces stainless steel; 100 mm / 4 in PU foam (U = 0.21 W/m²K)
- Floor: Chrome-nickel steel floor overlay, pattern-rolled 5WL
- Surface load: 50,000 N/m²
Technical specifications
- Article number: 9800-0013
- Designation: WIC3-230V
- Model variant: Standard
- Temperature range with humidity: 5...50 °C
- Humidity range: 20...90 % RH
- Temperature uniformity at 25 °C / 60 % RH: 1.5 ± K
- Temperature uniformity at 40 °C / 75 % RH: 1.5 ± K
- Temperature fluctuation at 25 °C / 60 % RH: 0.5 ± K
- Temperature fluctuation at 40 °C / 75 % RH: 0.5 ± K
- Humidity fluctuation at 25 °C / 60 % RH: 2.5 ± % RH
- Humidity fluctuation at 40 °C / 75 % RH: 2.5 ± % RH
- Rated voltage: 230 V
- Power frequency: 50 Hz
- Nominal power: 2.7 kW
- Unit fuse: 16.0 A
- Phase (nominal voltage): 1~
- Interior volume: ≈24.5 m³ (24,516 L)
- Net weight (empty): ≈1,186 kg
- Housing dimensions (net) W×H×D: 2,600 × 2,470 × 4,700 mm
- Internal dimensions W×H×D: 2,400 × 2,270 × 4,500 mm
- Unit doors: 1
- Energy consumption at 40 °C / 75 % RH: 1,150 Wh/h
- Refrigerant: environmentally friendly, GWP = 547
- Brand: BINDER
