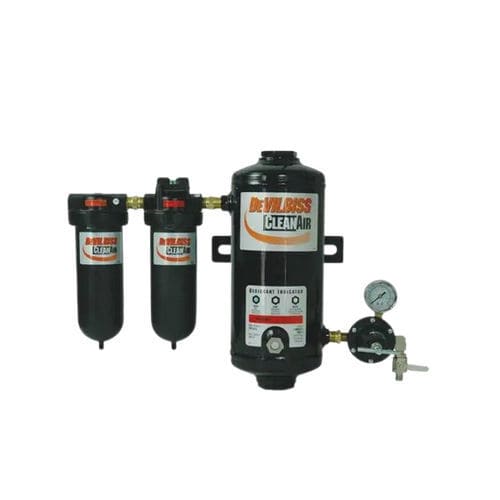

Desiccant compressed air dryer DAD-500™

three-stage

The DAD-500 system is an industry leader among air dryer systems. Remove oil, water, dirt and other contaminants from your compressed air to allow a high quality finish job. Even the tiniest of particles can have an affect on how your current paint job will turn out. With routine cleaning and maintenance, you can achieve a high quality finish every time. Properly Maintained Air Filtration Systems Eliminate Moisture and Dirt in Air Lines The DAD-500™ Dryer System also includes a 1/2″ ball valve shutoff for easy maintenance. 13-0041 (HAF-502) Water Separator Filter Specifications Air Inlet and Outlet ½” NPT(F) Flow Capacity 100 CFM Maximum Operating Pressure 150 PSIG (10.3 Bar) Maximum Temperature 150˚F (65.6˚C) Automatic Drain Standard Filter 5 micron HAF-505 Oil Coalescing Filter Specifications- Air Inlet and Outlet ½” NPT(F) Air Flow Capacity 55 CFM Maximum Operating Pressure 150 PSIG (10.3 Bar) Maximum Temperature 150˚F (65.6˚C) Automatic Mechanical Drain Standard Pressure Differential Indicator Standard Filter 0.01 micron
