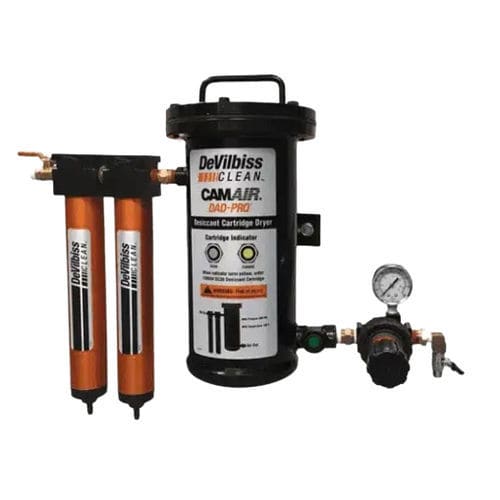

Desiccant compressed air dryer CAMAIR DAD-PRO

two-stage

The CamAir® DAD-PRO™ Desiccant Air Drying System provides worry free air filtration for top-quality paint jobs. Air enters the 2-stage filtration package where it is purged of water, oil and oil aerosols. Once cleaned, the air enters the desiccant tank to further remove any remaining water vapor. First stage filter removes oil, water and dirt down to 5 microns Second stage coalescer removes oil vapors and dirt particles down to .01 microns Desiccant tank removes water vapor and humidity down to a dew point of 40° F Bagged desiccant for ease of maintenance Replacement desiccant cartridge Replacement oil coalescer element 50 scfm 2-stage filter assembly with regulator Replacement water separator element Filter mounting bracket Float drain kit Specifications Air Inlet - 1/2″ NPT (Female) Air Outlet - 1/4″ NPT (Male) Air Flow Capacity - 30 CFM Max. Operating Pressure - 175 PSI (12 Bar) Max. Temperature - 150˚F (65.6˚C) Humidity Indicator - Green- OK, Yellow- Replace Desiccant Water Vapor Removal - -40˚F Dew point Partical Removal - .01 micron Manual Drain - Included Parts & Accessories Ref. - Order No. - Description - Parts Req. 1 - 130505 - Humidity Indicator (1 paper included) - 1 2 - 130510 - Gasket - 1 3 - 130504 - Desiccant cartridge (not shown) - 1 4 - CT-101 - Tank grommet (not shown) - 1
