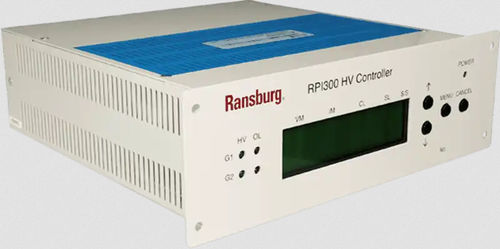

Voltage controller Ransburg RPI300

Features Equipped with a high-performance 32-bit CPU, self-diagnostics and automatic frequency adjustment functions are newly added. Values of kV, μA, CL, SL sensitivity and high voltage levels for two guns are displayed at the same time on the same screen due to the LCD display on the front panel. Menu operations can be switched to many other modes, so maintenance features including the sensitivity settings screen, monitoring screen and error log are enhanced. Physical specifications and mounting dimensions ensure compatibility with the existing RPI1200 high voltage controller. Power supply ranging from AC100 to 220V is available. Specifications Output voltage - -5 ～ -90kV Max. Output current - 200 μA Number of output voltage presets - 4presets Safety circuit - Over load detection function (CL) Slope di/dt sensitivity detection function (SL) Low voltage cable cut detection function (WT) HV transformer over current detection function (OC) Power input AC100V ～ 240V(AC85 ～ 265V）、50/60Hz、190VA Regulator voltage Oscillating frequency：11 ～ 28KHz Output voltage range：DC1 ～ 32V/3A max (less than 100W) Electric insulation Withstand voltage…AC1500V, 1minute Insulation resistance…DC500V…more than 100M Ω Condition - Temperature : 0 ～ 45℃, Humidity : 30 ～ 85%RH No condensation. Storage temperature : 5℃～ 50℃, 10 ～ 85%RH No condensation. Dimensions (W)250 ×(H)80 ×(D)240mm Weight 2.8kg
