Paint reciprocator Ransburg CER

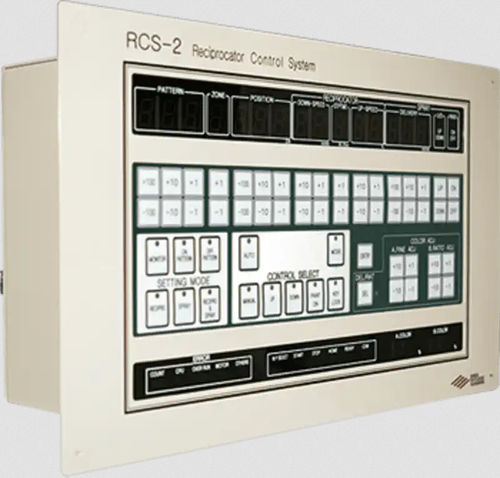

The reciprocator can be stopped in-between at any position (at 0.5~4.5 second, 0.5 second steps) to adjust for work shape, and you can chose from an abundance of 8 different maximum stroke lengths, between 900mm~3000mm. Features The following controls can be done by combining with RCS Controller. All controls can be operated with the control panel. All commands can be confirmed with digital display. Velocity set up is flexible.(5~60m/min) Coating condition (reciprocator storage run pattern) can be set up to 99. Control combined the stroke variable method with the paint cut method is possible. The reciprocator length (one stroke) can be divided into nine (9) zones and velocity for each zone can optionally be set. (Velocity pattern)…Also paint can be turned ON-OFF. The reciprocator can be stopped at the optional position according to the shape of the project. (0.5~4.5sec…It can be set for each pattern.) Delivery also can be set for each pattern. AC Paint Pump Unit can be controlled up to two (2) units. Small size, light weight and low noise compared with the current type. Multifunction Control Unit for reciprocation RCS-1 Flexible velocity setting of applicator. Set-up capability of 99 different coating conditions. Combined control of variable stroke and paint cut. Specifications Type - Rans-servo (CER Type) Application system - Gun / Bell Explosion-proof type Motor - AC Servo / 1.0 kW Position detection method - Built-in Stroke - Variable Stroke Control - Set up by 10mm
