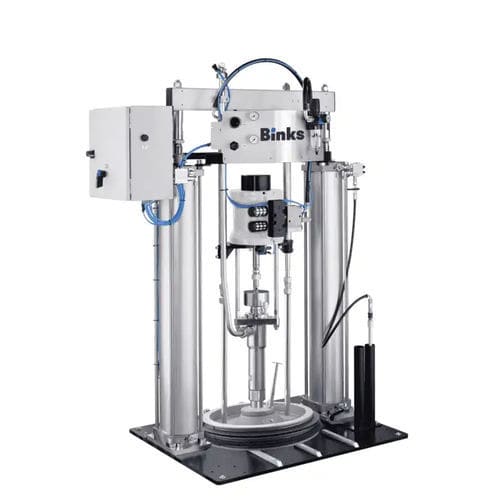

Liquids dispensing system Visco Star 200+

The Visco Star series was specially developed for the economical processing of fast, one-component assembly adhesives based on polyurethane with accelerators. The focus is particularly on user-friendliness and high performance. Despite a high and variable performance, the machine impresses with a remarkably low energy requirement. Optionally, the machine can be integrated into automated production lines. With ever shorter production processes in the vehicle manufacturing sector, fast-curing adhesives are becoming increasingly important. Options Conversion kit 20 liter follower plate for processing from small containers Swivel arms 1m and 2.3 m for optimum workplace design Mobile version with rollers and push handle for easy in-plant transport Flow boost valve for up to 50% higher output rate Automatic material discharge valve Material pressure control valve to set constant pressures for consistent material application Central material supply for feeding multiple workstations Electrically heated follower plate, pump and material hoses Benefits Low energy costs High output Constant pressures enable uniform material application Specifications Length - 800 mm Width - 1,000 mm Height - 3,300 mm Mixing ratio according to volume - 52:1 to 100:1 Output - 2,500 cm3/min (depending on material) Dyn. operating pressure (max) - 400 bar Weight - approx. 350 kg
