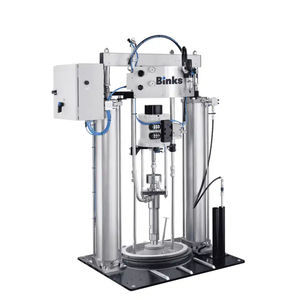

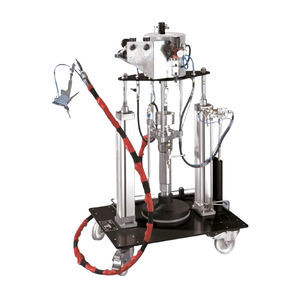

Manual mixing and metering unit Binks Ecostar Evoclass

compact

The mixing unit is particularly low-maintenance and requires only a few cleaning cycles. The footprint of the machine has been significantly reduced, making it one of the most compact gluing systems on the market. By increasing efficiency thanks to compact and flexible work areas, increasing popularity among employees and low maintenance requirements, the Ecostar evoair helps to reduce average production costs. Especially due to the hydraulic pumps, the Ecostar evoclass can be used in a variety of ways. Benefits Adjustable mixing ratios Optimized follower plate design for minimized material residuals Proven RT pump seals for minimized maintenance requirements Clad machine design for increased safety and reduced noise levels Flexible swivel arm, optionally with manipulator New Alpha Mix, optimized for quick and easy cleaning and maintenance. 200l drum garage for ergnomic drum changing Drum empty warning for A&B component Pot life and mixer start time adjustable Heated version for A component Specifications Length - 1,250 mm Width - 969 mm Height - 1,890 mm Mixing ratio according to volume - 6:1 – 14:1 Output (depending on material) - 1,800 – 1,960 cm3/min; approx. 2,500 g/min (polysulfide) Dyn. operating pressure (max.) - 300 bar Operating voltage - 3x 400 V + N + PE Frequency - 50 Hz Power rating (total) - 3,8 kW Weight - approx.590 kg
