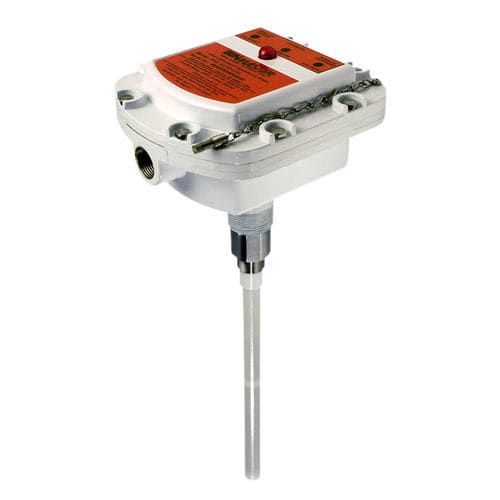

Capacitive level switch PRO AUTO-CAL 230

for slurriesthreaded

The BinMaster PRO AUTO-CAL 230 Power Pac delivers simple, reliable point-level detection with the convenience of automatic calibration. Operating on 230 VAC, it uses a magnetic trigger so setup and testing can be completed in minutes without removing the cover. Designed for precision, it offers sensitivity down to 0.5 pF and an adjustable time delay of up to 10 seconds to virtually eliminate false alarms. PRO-Shield technology minimizes the effects of material buildup, while operation below RF frequencies prevents signal interference. A bright LED status indicator provides clear visual feedback, making the PRO AUTO-CAL 230 a dependable, easy-to-use solution. Overview This capacitance sensor allows for simple, automatic calibration using a special magnet. No need to remove the unit cover! Want a capacitance probe that sets up fast? Temperature-stable calibration and external testing can be performed in just minutes. Get unsurpassed 0.5 pF sensitivity and fail-safe performance with the PRO AUTOCAL. Plus, an adjustable time delay of up to 10 seconds allows for settling of material—virtually eliminating false alarms. What else you get with PRO AUTOCAL: PRO-Shield compensates for material buildup to guard against false readings Operates below RF range, always free from RF interference Switch selectable high/low fail-safe safeguards from failures Delrin or Teflon sleeved, bare, food grade, flush mount, or flexible probes Visual LED indicates sensor status of uncovered, covered, or power failure How and where to use PRO AUTOCAL: For point level detection and process control for solid, liquids, or slurries Aggressive materials such as coal or fly ash; power, mining,
