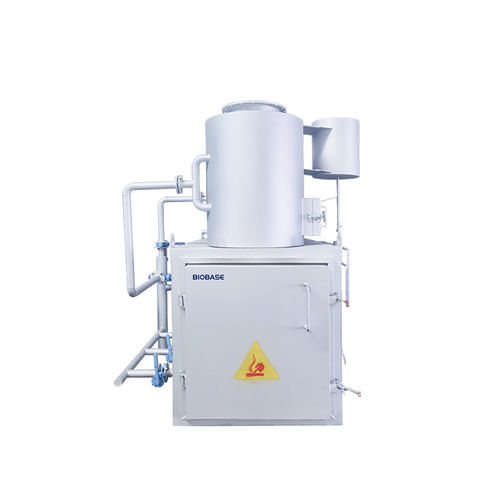

Waste incinerator BK-HLPG-300

rotary kiln

Waste incinerator is an efficient and environmentally friendly waste treatment equipment. Through high temperature combustion and advanced exhaust gas treatment technology, it ensures the safe and harmless treatment of waste. Features: 1. A double-chamber design with high thermal efficiency and excellent furnace insulation properties. 2. The design integrates the furnace door, utilizing zirconium-containing ceramic fiber cotton, which is non-deformable, lightweight, and offers excellent insulation properties. 3. A standalone design that isolates heat sources, ensuring safety and reliability, with tangential reoxygenation in the secondary combustion chamber to guarantee that flue gas residence time exceeds 2 seconds. Technical Parameters: Quantity of Combustion Chamber Dual Refractory Material Mullite, include 65% aluminium oxide Burner Three burners Burn Rate 150~300kg Fuel Consumption 10~15kg(Diesel) Flue Gas Retention More than 2 seconds Metal Thickness 6mm Emission Standard Smokeless and odorless Primary Combustion Chamber(Main Body) Capacity 200~300kg/batch Material Inner wall of the furnace: high aluminum refractory brick Vault: mullite castable, which is cast in one time There are observation holes and 2 burners Volume 1.75m³ Furnace Door 760*960mm Inside Size(W*D*H) 1850*900*1050mm
