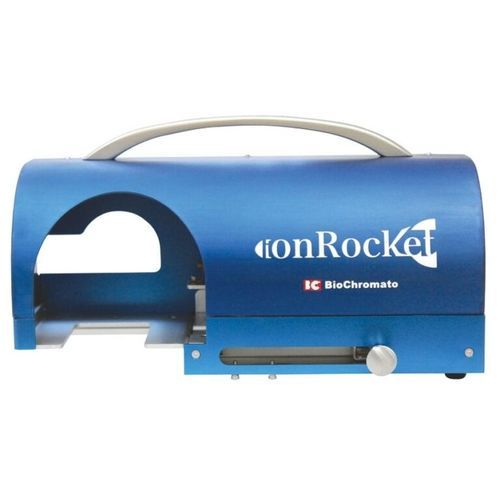

Sample analysis system ionRocket

direct

Temperature Gradient System for DART® Features - Connect to DART®-MS and visualize hidden compounds - Temperature Gradient System visualizes compounds in real time - Eliminates sample preparation steps - Great for polymer analysis typically using gel permeable chromatography "The ionRocket is actually a very important addition to the DART®-MS. It provides quantitative analysis and is remarkably sensitive!” - Analytical Chemistry & Materials Development Group at NASA JPL, Pasadena, CA ionRocket visualizes hidden compounds in your samples. ionRocket generates a temperature gradient from ambient up to as high as 600ºC over several minutes. This allows compounds in your samples to be sublimated, vaporized, or pyrolized according to their volatility, and then introduced into the DART® gas stream. Data obtained from ionRocket yields another axis of data (time/temperature) beyond that obtained from normal DART®-MS (Direct Analysis in Real Time-Mass Spectrometry) analysis. Species desorb in order of their volatility along the temperature gradient, and thus are separated in time. The data thus resembles that of an LC-MS or GC-MS chromatogram, consisting of temperature/time, m/z, and intensity. This can separate rare from abundant species, making them easier to detect.
