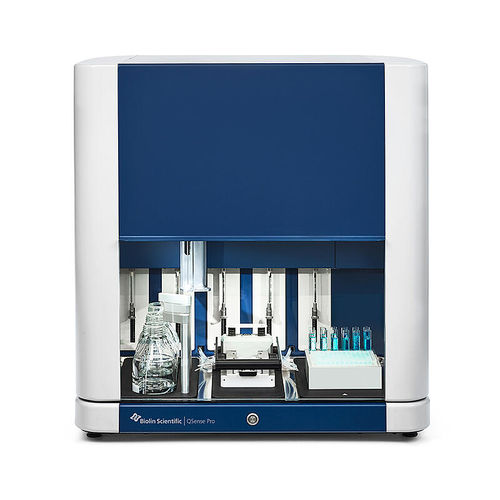

QCM-D measuring instrument QSense Pro

industrialbenchtopmulti-channel

QSense Pro Do you need to perform large-scale QCM-D analysis? The fully automated QSense Pro is best fit for the job. Overview Most suitable when You need maximized throughput The 8-channel system can produce a lot of data every day You want to test and compare samples 8 channels and 4 separately controlled syringe pumps let you evaluate several samples and parameters in one go You need highly reproducible results The fully automated system minimizes human errors and maximizes user-independence You want to conduct experiments in both high and low temperatures The instrument works with a temperature range between 4-70 °C You need more time The system can be pre-programmed and left unattended during experiments, leaving you with time to do other things Measurement range and capacity Measurement channels - 8 Working temperature - 4 to 70 °C, 4 to 150 °C using accessory chamber (QSense High Temperature chamber) Sensors (frequency range) - 5 MHz (1-72) Number of measured harmonics - 7, allows for full viscoelastic modeling Standard sensors The sensor is at the heart of the QCM-D experiment. Browse the widest range of sensors on the market to find out which sensor material and coating is best suited for your research. We offer over 50 standard sensors - from various metals, oxides and carbides to polymers, functionalized coatings and and standardized soils. Our sensors are developed and produced to provide you with stable, reliable and reproducible data. Full performance is ensured through extensive quality controls and guaranteed for one-time use according to the recommendations.
