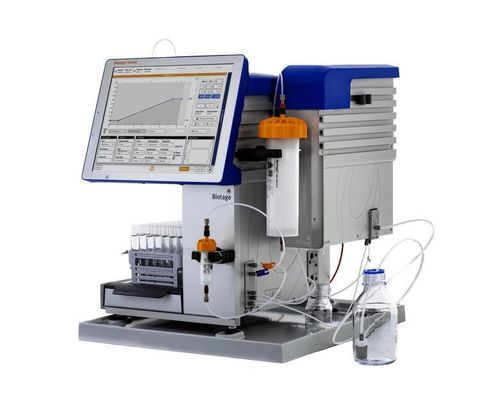

Evaporative light-scattering detector Selekt ELSD

light scatteringvolatile organic compoundfor chromatography

Advanced evaporative light-scattering detector for effortless and robust detection of compounds lacking chromophores. This modular, fully automated solution is easy to install, and it seamlessly integrates with the Biotage® Selekt family of flash purification systems. Benefits: - Efficient Detection: Identify different types of compounds and impurities easily. Can be combined with high sensitivity UV for enhanced detection. Automatic gain adjustment ensures a comprehensive view of sample peaks, enhancing isolation accuracy. - Ease of Use: Fully automated and seamlessly integrated into Biotage® Selekt system software. Maximize efficiency across all sample types with pre-defined methods or customize your own. - Robust Purification: Micro-liter sampling achieves high recovery rates with minimal sample consumption. The combination of a carrier solvent and automatic cleaning keeps operations smooth, preventing clogs and reducing the risk of failed runs with minimal maintenance requirements. Specifications: - Dimensions: 380 x 340 x 140 mm (15.0” x 13.4” x 5.5”) - Weight: 9 kg (20 lbs) - Materials: Wetted parts consist of stainless steel, FFKM, PEEK, PP, PE, FEP, PTFE, silica, carbon fiber filled PTFE, and fused silica, which are not affected by common chromatographic solvents. - Flow Rate: Selekt: 1 to 300 mL/min; ELSD during prime: 150 mL/min; ELSD during run: 0.15 mL/min - Makeup Pump Pressure Range: 0 to 10 bar (0 to 1000 kPa; 0 to 145 psi) - Gas Supply: Gas: Nitrogen. Air can be used with nonflammable solvents. Pressure: 4 to 10 bar (0.4 to 1.0 MPa; 58 to 145 psi). Recommended is 6 bar (0.6 MPa; 87 psi). Purity: >98% purity. Particle size: Filtered to 0.01 μm. Tubing: 4 mm (0.15748”) outer diameter. Max consumption: 1.5 Ls/min. - Detection: High sensitivity photodiode - Fume Hood/Ventilation System: A laboratory fume hood with the capacity to handle hazardous exhaust vapors from Biotage® Selekt ELSD, leakage of solvents, and provide suitable airflow to prevent the build-up of flammable vapors. - Ambient Temperature: Operating: 15°C to 32°C (59°F to 90°F); Storage and transportation: -25°C to 60°C (-13°F to 140°F) - Humidity: 20% to 90% RH (non-condensing) - Drift Tube Temperature: 20°C to 100°C (68 to 212°F). Minimum guaranteed temperature is 5°C (9°F) above ambient temperature. - Certificate: CE and FCC marked. CB and NRTL certified. Part Number: 418800 - Biotage® Selekt ELSD Evaporative light-scattering detector for flash chromatography Characteristics / Technical Specifications: - Advanced evaporative light-scattering detector - Effortless and robust detection of compounds lacking chromophores - Fully automated and modular - Seamless integration with Biotage® Selekt flash purification systems - Micro-liter sampling for high recovery rates - Automatic cleaning and carrier solvent system - High sensitivity photodiode detection - CE and FCC marked, CB and NRTL certified
