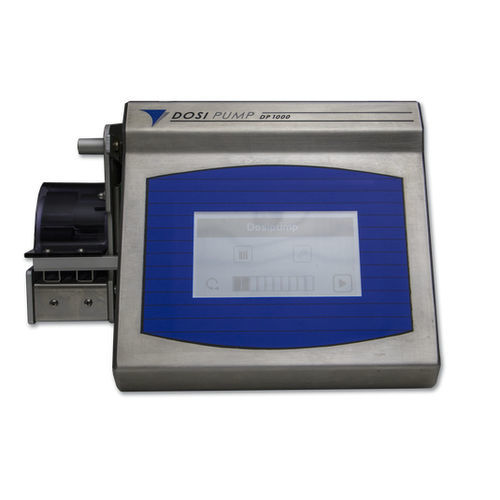

Peristaltic pump DosiPump DP1000
for solventselectricmobile

peristaltic pump
peristaltic pump
peristaltic pump
peristaltic pump
peristaltic pump
Add to favorites
Compare this product


Characteristics

Fluid
for solvents
Operation
electric
Technology
peristaltic
Mobility
mobile
Domain
for the chemical industry, for pharmaceutical applications
Applications
dosing
Material
stainless steel
Voltage
220 V
Protection level
water-resistant
Other characteristics
programmable
Flow

Max.: 2.4 l/min
(0.63401 us gal/min)

Min.: 0.01 l/min
(0.00264 us gal/min)

Fluid temperature

Max.: 45 °C
(113 °F)

Min.: 5 °C
(41 °F)

Length

275 mm
(11 in)

Width

305 mm
(12.01 in)

Height

205 mm
(8.07 in)

Weight

7.1 kg
(15.65 lb)

Description

Smart pump • Multipurpose peristaltic pump • 2 versions: max. 800 ml/min - 2.4 l/min • Stainless steel housing • iP64 splash water protected • Low pulsation by 10-roller pump head • Different diameter double tubings • Calibration and storage of 8 tubing • Optional foot switch & stage bar • Small foot-print takes up less bench space The unique DosiPump DP1000 is a very precise peristaltic pump with 10-roller double pump head, therefore offering very low pulsation, "made in Switzerland".Icon-driven intuitive software, touch screen, featuring a broad range of possible applications and with a sensational price-performance ratio. Pump direction, speed, volume, antidrop, pause and cycle repetition are programmable. Up to 8 calibrated tubing’s can be stored and 16 programs including up to 16 steps can be saved. Different tube diameters can be used. Extrem fast tubing exchange: The sturdy aluminium mechanism opens the pump head "at the flick of a wrist". Either two individual tubes or one twin tube can be attached to the pump. The ducts in the pump are spring-loaded, so as gentle on the tubing. • DP1000 : 10-800 ml/min • DP1000_fast: 40-2400 ml/min • Easy to use • Easy to calibrate • Freely programmable • Touch screen • Speed, pause and antidrop function • Rapid tubing Exchange
