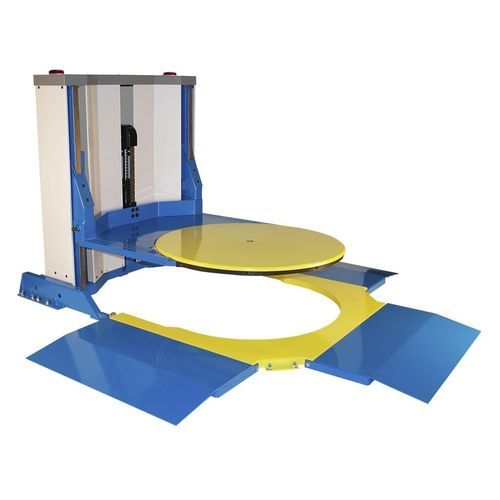

Pallet lift EZ OFF series

The Bishamon EZ-Off Lifter is exceptionally safe and easy to use. It features a rotating platform with a unique, patented feet-clear safety circuit that automatically stops the platform 9 inches above the floor to prevent foot injuries. It is also equipped with safety warning lights and an alarm that alerts the operator before it lowers from the intermediate safety stop. The EZ-Off Lifter has a 40.5 in. diameter rotating disk that is supported by 32 precision ball bearings. Hydraulic lift and lowering is powered by an electric motor. It also features an integrated approach ramp that makes it easy for pallet trucks to access the platform. • CAPACITY - 1.75 In. Lowered Height With 2500 Lbs. Capacity • ERGONOMICS - Rotating Platform For Enhanced Ergonomics • SAFETY - Patented "Feet Clear" System For Operator Safety • RAMP POSITIONS - 3S Model With Multiple Ramp Positions Minimizes Floor Space Requirements EZ-Off Design Features • Unique feet-clear safety circuit automatically stops the platform descent 9 in. above the floor surface preventing unintentional foot entrapment under the platform or pallet • Safety warning lights and alarm alert the operator before the platform lowers from the intermediate safety stop • Platform safety covers and chain cover guard against pinch points around mast, chain and rollers • Chain cover guards pinch points around the upper chain wheel • Unitized power unit / reservoir • 1/2 HP, 115V electric motor • 40.5 in. diameter rotating disk supported by 32 precision ball bearings • Automatic platform lock prevents platform rotation in the lowered position • Integrated approach ramp
