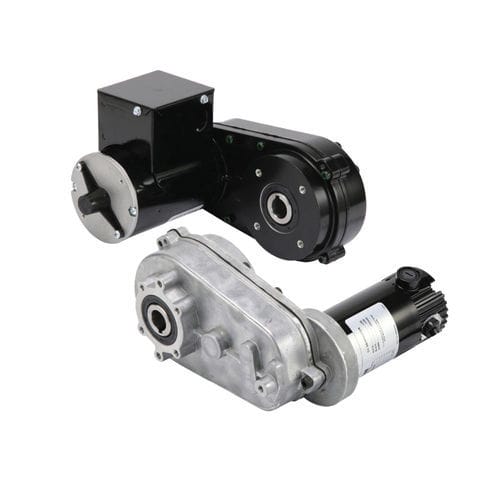

Parallel-shaft gearmotor 562 Series

DCACpermanent magnet

1-65 RPM · 66-1100 in-lbs · 1/20 - 1/8 HP · AC & DC options available Motor Specifications Enclosure: TENV Insulation: Class B Minimum (AC), Class F (DC) Bearings: Ball Rotation: Reversible Motor Type: Permanent Split Capacitor - Capacitor Included on PSC, Permanent Magnet on DC Gearhead Specifications Finish: Gloss Black Powder Coat Mounting: Shaft Mount, Base Mount, or Face Mount Any Angle Shafts: Hardened Steel Bearings: Output Shaft Supported by Ball Bearings, Intermediate Gearing Supported by Needle Bearings Lubrication: Grease Housing: Precision Machined Die Cast Aluminum Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical Metal, Balance Spur Metal Duty Rating: Continuous Compact Design Delivers optimal speed and torque in a small package. Perfect for applications that have limited space. High Torque Output Optimized gear train provides high levels of torque for the most demanding applications. Continuous Duty Motors rated for continuous duty operation. Markets & Applications Ice Making & Dispensing Food & Beverage Preparation Agricultural Equipment Material Handling Equipment
