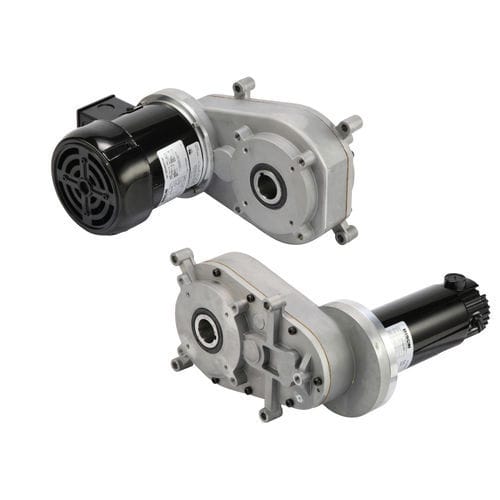

Parallel-shaft gearmotor 762 Series

DCACpermanent magnet

6-12 RPM · 1075-2020 in-lbs · 1/4 HP · AC & DC options available Motor Specifications Enclosure: TENV Insulation: Class B Minimum (AC), Class F (DC) Bearings: Ball Rotation: Reversible Motor Type: Permanent Split Capacitor - Capacitor Included on PSC, Permanent Magnet on DC Gearhead Specifications Finish: Unpainted Mounting: Shaft Mount, Base Moung, or Face Mount Any Angle Shafts: Hardened Steel Bearings: Output Shaft Supported by Ball Bearings, Intermediate Gearing Supported by Needle Bearings Lubrication: Grease Housing: Precision Machined Die Cast Aluminum Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical Metal, Balance Spur Metal Duty Rating: Continuous High Torque Output Optimized gear train provides high levels of torque for the most demanding applications. Continuous Duty Motors rated for continuous duty operation. Customizable Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.
