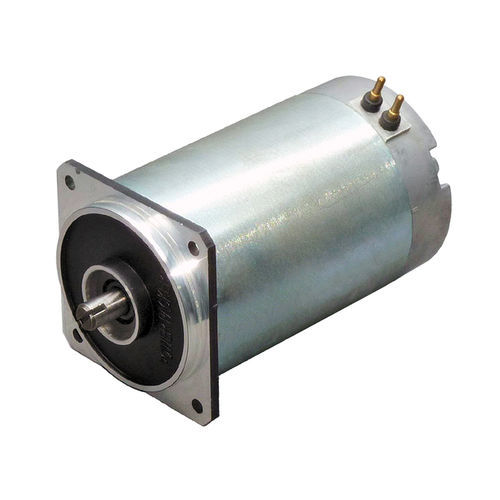

Permanent magnet motor CPM-023brushedDC240 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 240 V, 120V, 24 V, 12 V, 48 V, 90 V
- Configuration
- permanent magnet
- Protection class
- rugged
- Number of poles
- 2-pole
- Applications
- industrial, for pump, for lifting applications, agricultural, for winches, for wheelchairs
- Power
230 W, 340 W, 970 W
(0.31 hp, 0.46 hp, 1.32 hp)- Torque
Min.: 0.07 Nm
(0.051629 ft.lb)Max.: 4.2 Nm
(3.097761 ft.lb)- Rotational speed
Min.: 500 rpm
(3,141.5927 rad.min-1)Max.: 9,000 rpm
(56,548.6678 rad.min-1)- Diameter
78 mm, 83 mm
(3.07 in, 3.27 in)
Description
Outputs from 0.3 to 1.3 hp, torque from 0.05 to 3.1 ft-lb and speeds from 500 to 9000 rpm characterize these versatile light-duty PMDC motors. Ideal for many applications, including agricultural machinery, industrial pumps, passenger lifts, wheelchairs, winches and more. Customization is available.
Durable & Reliable
Rugged designs made with the highest quality materials withstand the most demanding operating environments.
Manufacturing
Options include ISO 9001 certified state-of-the-art facilities in North America and Asia to provide better lead times and support.
Markets & Applications
Agricultural Equipment
Industrial Pumps
Passenger Lifts
Snow Plows & Salt Spreaders
Treadmills
Wheelchair Lifts
