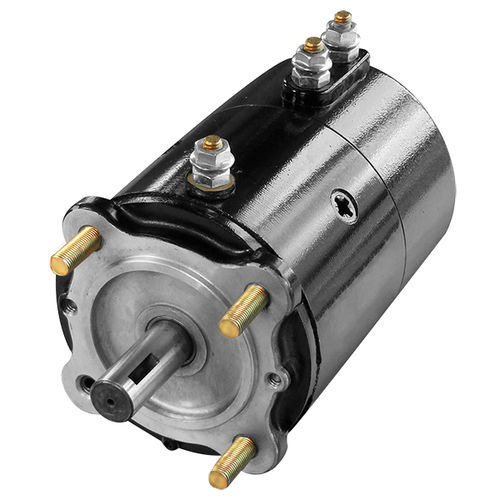

Wound rotor motor MBJ-6302brushedDC12 V
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- brushed, DC
- Voltage
- 12 V
- Protection class
- rugged, robust
- Configuration
- wound rotor
- Number of poles
- 4-pole
- Applications
- industrial, for pump, for lifting applications, agricultural, for winches
- Power
2,540 W, 2,610 W, 3,360 W, 3,430 W
(3.453 hp, 3.549 hp, 4.568 hp, 4.664 hp)- Torque
Max.: 21.6 Nm
(15.93134 ft.lb)Min.: 1.35 Nm
(0.99571 ft.lb)- Rotational speed
Max.: 4,800 rpm
(30,159.29 rad.min-1)Min.: 1,400 rpm
(8,796.46 rad.min-1)
Description
Outputs from 3.4 to 4.6 hp, torque from 1.0 to 16.0 ft-lb and speeds from 1400 to 4800 rpm characterize these 4-pole medium-duty 4.50" motors. Ideal for aerial work platforms, agricultural machinery, industrial pumps, passenger lifts, snow plows, winches and more. Customization is available.
Durable & Reliable
Rugged designs made with the highest quality materials withstand the most demanding operating environments.
Markets & Applications
Aerial Work Platforms
Agricultural Equipment
Industrial Pumps
Passenger Lifts
Snow Plows & Salt Spreaders
Winches & Hoists
