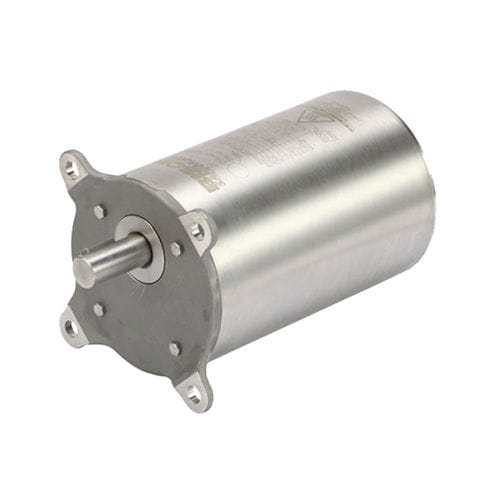

Washdown gear-motor 261 Series SanimotorAChelical gearparallel-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- AC
- Type
- helical gear
- Shaft orientation
- parallel-shaft
- Power
- 100 W...500 W, 10 W...50 W, 50 W...100 W
- Voltage
- 460 V, 380 V
- Torque
- 1 - 5 Nm, 10 - 20 Nm, 20 - 50 Nm
- Number of stages
- three-stage, single-stage, four-stage
- Product applications
- for hygienic applications, washdown
- Other characteristics
- compact, maintenance-free, with integrated inverter, stainless steel, IP69K
- Gear ratio
Min.: 5 unit
Max.: 221 unit
Description
8-350 RPM · 16-500 in-lbs · 1/7 and 1/8 HP · AC Inverter Duty Motor
- IP69K washdown rated
- Motor and gear train enclosed in one sealed stainless steel shell.
- Two part, spring loaded stainless steel and EPDM triple lip shaft seal.
- 304 stainless steel cover
- EPDM O-rings for a tight seal
- 316 stainless steel, o-ring sealed hex bolts hold cover in place.
- Stainless steel output shaft with captured keyway.
- Modular gear train incorporates sealed ball bearings and is capable of high load conditions.
- Food grade H1 grease is used for maintenance-free lifetime lubrication.
- Laser marked motor nameplate
- Removable IP69K ABS cordset connects to stainless steel multi-pin connector.
- 230 V, 60/50 Hz, inverter duty motor.
IP69K Rated
Stainless steel IP69K rated design will stand-up to the pressurized hot water and chemicals used in the washdown process.
Continuous Duty
Motors rated for continuous duty operation.
Durable & Reliable
Rugged design withstands the harshest, most demanding operating environments.
