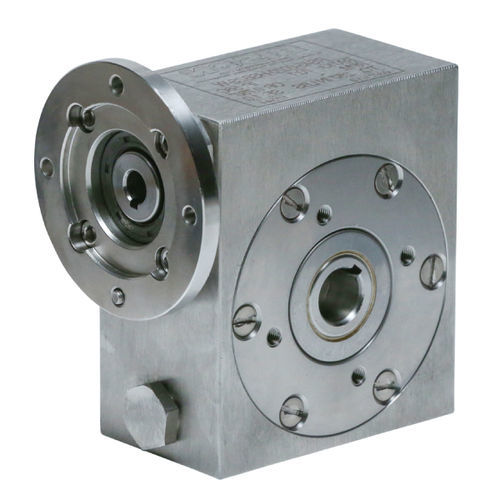

Stainless steel gear reducer IHP-S Serieswormright anglehollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Torque
- 200 - 500 Nm, 20 - 50 Nm, 50 - 100 Nm, 10 - 20 Nm
- Configuration
- modular, flange
- Performance
- high-power
- Applications
- for medical devices, for food industry machinery, shaft
- Other characteristics
- stainless steel, IEC B14, high-temperature, washdown
- Rotational speed
Min.: 17.2 rpm
(108.0708 rad.min-1)Max.: 250 rpm
(1,570.7963 rad.min-1)- Power
Min.: 0.25 ch
(0.25 hp)Max.: 5 ch
(5 hp)- Gear ratio
Min.: 7 unit
Max.: 100 unit
Description
Stainless Steel Shell Worm Gear, 257 - 2921 in-lbs., 1/4 - 5 HP, 17.2 - 250 RPM
IP69K Rated
Full stainless steel smooth surface designed to withstand high pressure washdown environment.
Options
Protective seals cup to withstand high pressure cleaning for hollow or extended shaft versions
Output Shaft
Interchangeable right or left hand output shafts available
Single Piece Stainless Steel Allow Housing
Special housing designed to keep adequate lubrication with low oil quantity to avoid internal pressures
Flange
Fully modular to NEMA C Flange or IEC B14
Second Bearing
Standard second bearing on motor flange side
100% Factory Pressure Leak Tested
O-Rings on All Closing Covers
IP69K Rated
Stainless steel IP69K rated design will stand-up to the pressurized hot water and chemicals used in the washdown process.
Durable & Reliable
Rugged design withstands the harshest, most demanding operating environments.
High Torque Output
Perfect for larger format applications that require high levels of torque and quiet operation.
