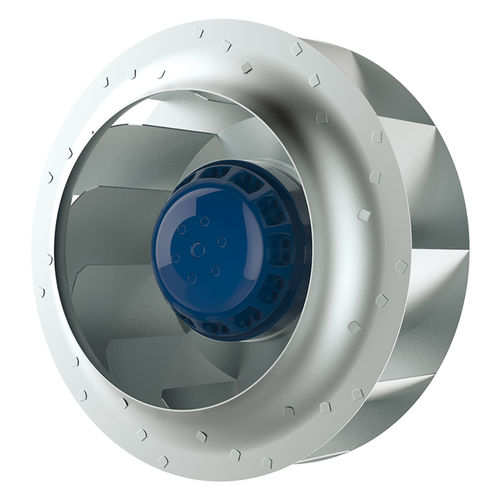

Backward curved fan BL-B225F-2E-C01-01
centrifugal230VACgalvanised steel

Backward curved fan - BL-B225F-2E-C01-01 - Blauberg Motoren - centrifugal / 230VAC / galvanised steel
Backward curved fan - BL-B225F-2E-C01-01 - Blauberg Motoren - centrifugal / 230VAC / galvanised steel
Add to favorites
Compare this product

Characteristics

Configuration
centrifugal
Supply voltage
230VAC
Material
galvanised steel
Other characteristics
backward curved, IP44
Diameter

225 mm
(8.858 in)

Rotational speed

2,500 rpm
(15,708 rad.min-1)

Noise level

70 dB, 71 dB

Description

• Impeller material: galvanized steel • Direction of rotation: clockwise, seen on rotor • Insulation class: B • Mode of operation: continuous operation (S1) • Bearing: ball bearings • Motor protection: - self-resetting TOP wired internally
