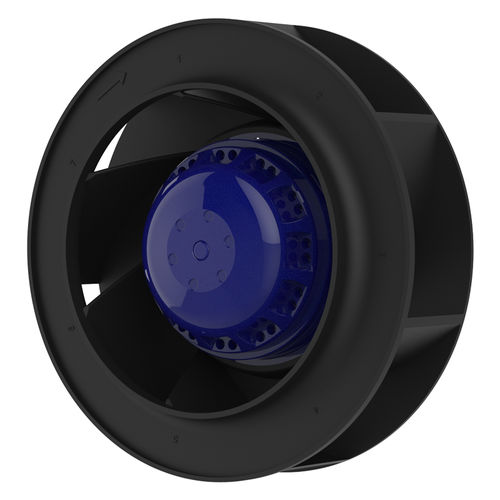

Backward curved fan BL-B190A-2E-A02-01centrifugal230VACelectrically-powered
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Material
- plastic
- Other characteristics
- IP44, backward curved
- Diameter
190 mm
(7.48 in)- Rotational speed
2,600 rpm, 3,000 rpm
(16,336 rad.min-1, 18,850 rad.min-1)- Noise level
60 dB, 65 dB
Description
• Impeller material: PA plastic + 30% glass fiber
• Direction of rotation: clockwise, seen on rotor
• Insulation class: B
• Mode of operation: continuous operation (S1)
• Bearing: ball bearings
• Motor protection: self-resetting TOP wired internally
