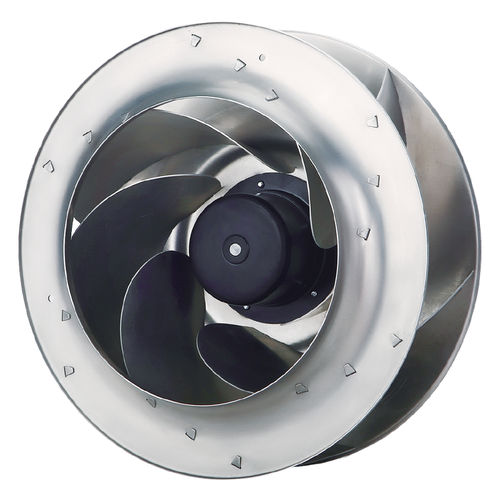

Backward curved fan BL-B400A-EC-02centrifugal230VACelectrically-powered
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Material
- aluminum
- Other characteristics
- IP55, backward curved
- Diameter
400 mm
(15.748 in)- Rotational speed
1,180 rpm
(7,414 rad.min-1)- Noise level
71 dB
Description
Impeller material: sheet aluminium
Speed control: 0 ~ 10V DC/PWM
Direction of rotation: clockwise, seen on rotor
Insulation class: B
Mode of operation: continuous operation (S1)
Bearing: ball bearings
Motor protection: self-resetting TOP wired internally
Catalogs
No catalogs are available for this product.
See all of Blauberg Motoren‘s catalogsOther Blauberg Motoren products
