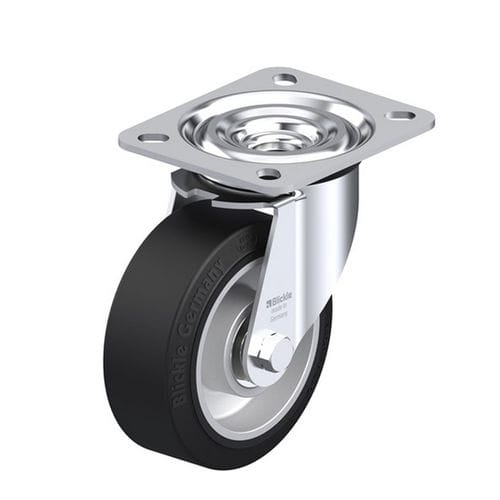

Swivel caster L-ALEV seriesbase platewith ball bearinghigh load capacity
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with ball bearing, high load capacity, low-noise, pressed steel, aluminum, elastic rubber
- Load capacity
Min.: 200 kg
(441 lb)Max.: 500 kg
(1,102 lb)- Wheel diameter
Min.: 100 mm
(3.937 in)Max.: 250 mm
(9.843 in)- Tread width
Min.: 40 mm
(1.57 in)Max.: 50 mm
(1.97 in)
Description
The ALEV series is made of a high-quality elastic solid rubber tread and a wheel centre made of die-cast aluminium. The smooth rolling tread has a hardness of 65 Shore A and is vulcanised onto the wheel centre. The heavy duty wheels and castors in the ALEV series provide a low level of rolling resistance, a high level of operational comfort, low-noise operation and good floor preservation.
Unlike the POEV series, the ALEV wheels are suitable for use at higher speeds due to their aluminium wheel centre. This makes the series a versatile performer in a wide range of applications.
