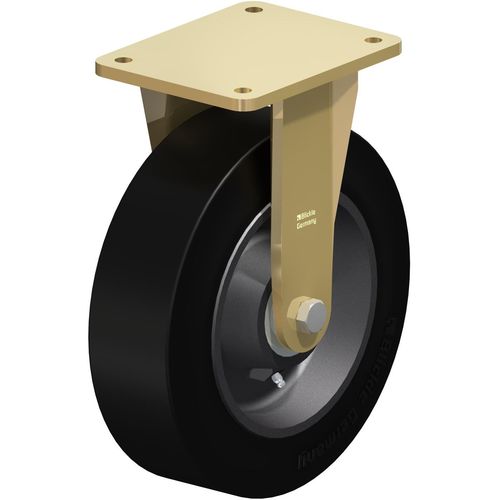

Fixed caster BS-GEV series
base platehigh load capacitylow-noise

fixed caster
fixed caster
fixed caster
fixed caster
fixed caster
Add to favorites
Compare this product

Go to the Blickle Räder+Rollen GmbH u. Co. KG website for more information

Characteristics

Type
fixed
Mount
base plate
Other characteristics
high load capacity, low-noise, steel, elastic rubber, cast iron
Load capacity

Min.: 900 kg
(1,984 lb)

Max.: 3,000 kg
(6,614 lb)

Wheel diameter

Min.: 300 mm
(11.811 in)

Max.: 620 mm
(24.409 in)

Tread width

Min.: 90 mm
(3.54 in)

Max.: 200 mm
(7.87 in)

Description

The high quality elastic solid rubber tyres in the GEV series are steel-wire reinforced and have a hardness of 65 Shore A. The wheel centre with a grease nipple is made from rugged grey cast iron. In addition to a low level of rolling resistance, the wheels are quiet and provide good floor preservation. The wheels can also be used for higher speeds up to 16 km/h with a reduced load capacity. The GEV wheel series is also available as a drive wheel (GEVN series)or as a hub fitting wheel (GEVA series) .
