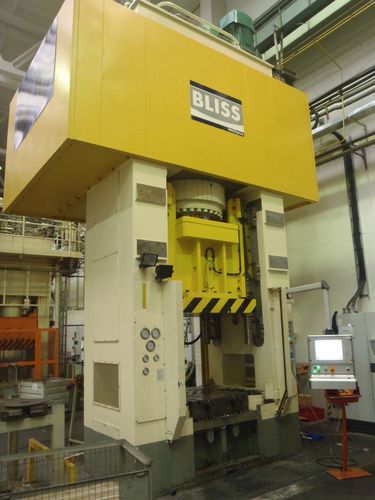

Mechanical press

hydraulicdrawingblanking

Hydraulic production presses for drawing operations have the advantage of full-rated capacity available over the entire stroke Speed and capacity are also adjustable during the stroke. These presses are more flexible then their mechanical colleagues. Very quick, they become multifunctional in order to respond to wide variety in forming technology. BLISS-BRET hydraulic blanking/drawing presses offer an advantageous price/performance ratio. We offer single, double or triple action hydraulic presses and depending on the production requirements, we equip our presses with: Damping system For blanking and cutting operations, our hydraulic presses are equipped with heavy hydraulic shock-absorbers. The damping is stroke independent and the pressure relief is fully controlled. Besides, our impact dampers offer mechanical stroke limitation. Drawing cushion system The cushions are installed in the inferior press-part, or in the slide, either with heavy column guides or with 8-way flat guides. The cushion pressure is controlled and can be programmed in function of the press-stroke.
