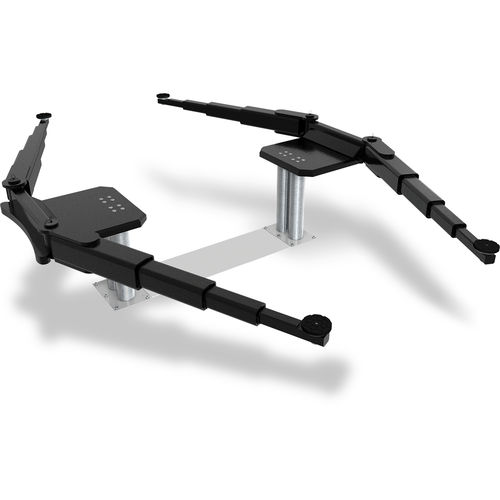

Due to their numerous adjustment options, inground lifts with swivel arms are suitable for nearly all repair jobs. Compared to the S2/S3 entry-level models, the swivel arms for the RA models are fastened onto a slider, and can therefore be more finely adjusted. The special strengths of the BR models are especially suitable for bodywork.
260 bar high-pressure hydraulic unit in lower oil design with integrated 3.0 kW motor, valve, and oil fill volume.
Double extendable swivel arms cover the support ranges of small passenger cars and SUVs, up to small busses and vans.
Installation cassette with stainless steel cover and built-in rubber face seal.
Short assembly times thanks to lift unit preassembled in the factory with 12-m long cable set.
In all RA models, the swivel arms are supported on the left and right on a swivel arm mover. Depending on requirements, they can be moved parallel to the longitudinal axis of the vehicle.
Quality comes first - we guarantee the seal of the cylinders for 5 years.
Base guides made of high-tensile stainless dye cast aluminium alloy with built-in seal, guide belts, and grease chamber.
Two reversing cylinders, support and drive cylinders with hard chrome plating.
Synchronous safety mechanism to compensate for different loads over a 2-part transverse.
Guide belts protect the hydraulic seal against forces acting laterally. The hydraulics are permanently protected inside the installation cassette.
Electronic control with length measurement system via potentiometer without mechanical or inductive limit switch. Parameter values can be adjusted and stored long-term in EEPROM (available without electronic control if desired).
