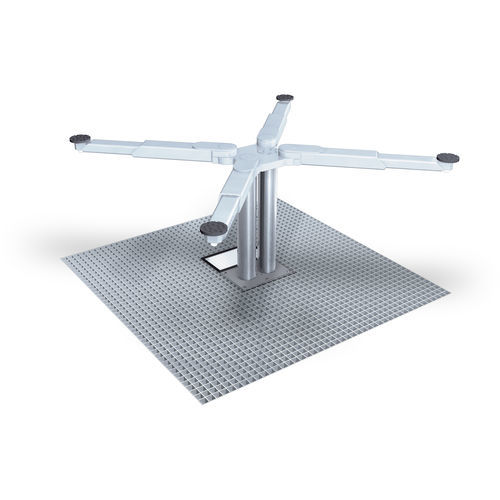

Inground lift SL135
3.5 tonelectro-hydraulic400V

inground lift
inground lift
Add to favorites
Compare this product


Characteristics

Type
inground
Maximum load
3.5 ton
Operation
electro-hydraulic
Voltage
400V
Applications
for car
Lifting height

Min.: 60 mm (2.362 in)

Max.: 1,895 mm (74.606 in)

Description

1-Cylinder Inground Lifts from Blitzrotary are available with h chassis and X chassis. The H chassis version is used primarily in the area of maintenance; the X chassis version is especially suitable for bodywork. Both boast the same rugged design and the same flawless quality. 260 bar high-pressure hydraulic unit in lower oil design with integrated 3.0 kW motor, valve, and oil fill volume. Hot-galvanised longitudinal support and swivel arm support bridge guarantees long service life. Hydraulic, hard chrome plated safety guards to protect against unwanted sinking down. Short assembly times thanks to lift unit preassembled in the factory with 12-m long cable set. In combination with a freely movable rubber bases, this lift is the preferred choice when there is limited free space below floor level, for side cladding that reach far down, and for pick up points located further under the vehicle. Quality comes first - we guarantee the seal of the cylinders for 5 years. Base guides made of high-tensile stainless dye cast aluminium alloy with built-in seal, guide belts, and grease chamber. Installation cassette with stainless steel cover and built-in rubber face seal. Two reversing cylinders, support and drive cylinders with hard chrome plating. Guide belts protect the hydraulic seal against forces acting laterally. The hydraulics are permanently protected inside the installation cassette. Foil keyboard for raising and lowering with tactile feedback and visual error display plus lockable power switch - incl. emergency air release on the control section. Electronic control with length measurement system via potentiometer without mechanical or inductive limit switch.
