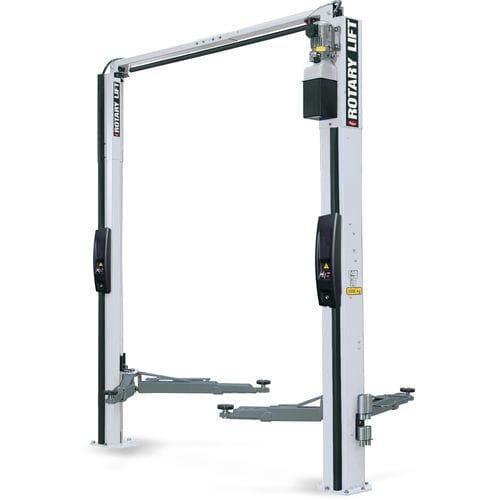

2 post lift SPOA3TM
3.5 tonelectro-hydraulic400V

2 post lift
2 post lift
2 post lift
2 post lift
2 post lift
2 post lift
2 post lift
Add to favorites
Compare this product


Characteristics

Type
2 post
Maximum load
3.5 ton
Operation
electro-hydraulic
Voltage
400V, 220 V
Applications
for car
Lifting height

Min.: 85 mm (3.346 in)

Max.: 2,083 mm (82.008 in)

Description

The electro-hydraulic 2-post lifts of the SPO-series convince by an outstanding pick-up area. The control system is available in a manual and an electric version, as well as different column heights. SPO series - the best-selling lift in the world Maximum security with the Rotary 3PSS concept Pick-up range up to VW T6 long 3PSS Concept (3 Phase Security System) includes: Mechanical safety latches integrated on both sides with automatic actuation Load-free synchronization pulleys secure the load during the lifting and lowering process Hydraulic system secured by non-return valve including maintenance-free high-pressure cylinder in both posts The asymmetrical posts and support arm design allows for optimum door clearance. The maximum drive-through width with minimum external dimensions and the construction without a base frame ensure problem-free access to the lifting platform. The rotary plates are pluggable and can be extended or replaced reliably and cost-effectively with attachments. For a plus in ergonomics and economy, the 2nd control panel (for SPOA 3 TS) may be selected. One control unit is equipped with a 220 V connection (fused with 16 ampere for electric hand tools) and the second with compressed air preparation. The upper safety switch-off effectively protects vehicles with a higher overall height from damage during lifting. The electro-hydraulic design with only one unit ensures energy-saving operation with fast lifting and lowering times. Flanged to the upper part of the lifting column, the unit is protected from external influences and allows more freedom of movement.
