cut-off saw / for steel / for aluminum / for non-ferrous metals
CM602

{{requestButtons}}

Characteristics

  • Technology:

    cut-off

  • Treated material:

    for steel, for aluminum, for non-ferrous metals

  • Applications:

    for profiles, for tubes, for bars

  • Other characteristics:

    automatic, CNC, precision, compact

  • Round piece diameter:

    102 mm

Description

Automatic saw machine to cut tubes and solid bars
High precision tube cutting machine for short length parts

The best configuration for all applications

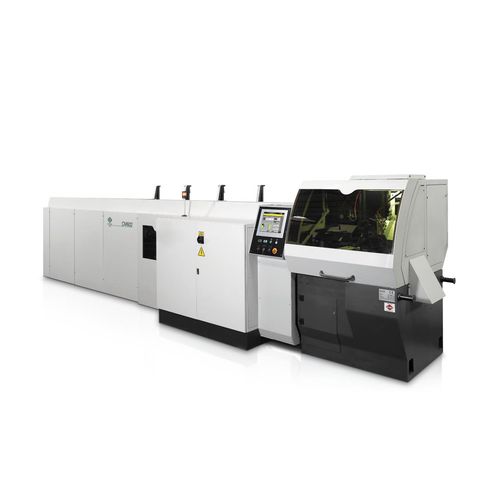

The CM602 is an automatic CNC sawing machine designed to load full length bars and cut them to short and medium length parts. Choose the configuration most suited to your application for the best results. The CM602 is available for cutting steel, aluminum, brass and high-strength metals. Compact, robust and simple to use, the CM602 cutting machine for tube and solid bars is ready to work non-stop, 24 hours a day.

From simple to sophisticated: the right loader for every need
A variety of loaders can be chosen according to the application. From a simple sloped plane loader table or sling type bundle loader to a sophisticated stepper device for special shaped profiles. There are loaders for single or dual bar feeding and for heavy bars or tubes. Each is designed for robust operation and high productivity.

Customized managing of parts and scrap
Two unloading positions for parts up to 500 mm (19.6”) long with programmable ‘box change’ function.

Bar end drops and chips are discharged separately to the rear of the machine.

An optional device can add two additional collection positions for parts from 250 to 1500mm (10” to 59”) of length.
