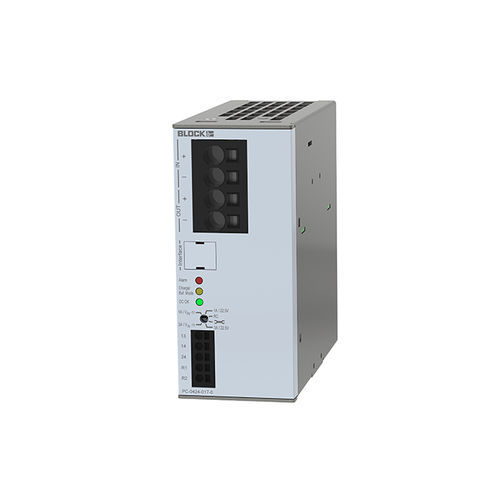

Buffer module PC-0424-017-0

buffer module
buffer module
Add to favorites
Compare this product


Description

Input rated voltage 24 Vdc Output rated voltage 24 Vdc Ambient temperature -13 °F / -25 °C to +158 °F / +70 °C Efficiency typ. 99 % Protection index IP 20 Output rated current 20 - 40 A Benefits Stabilized output voltage with hard cut-off characteristic Long buffer times up to the minute range 3 years warranty Partially expandable by capacity modules Up to 40 A output current Shock and vibration-proof USB socket Parameterization via rotary switch or via USB interface Minimal maintenance due to long life of the ultra-capacitors Standards Safety: IEC 61010 (SELV) (PELV) EMC: EN 61000-6-3 (Interference emissions), EN 61000-6-2 (Interference immunity) Approvals UL 61010-1, CSA 22.2 No. 61010-1-12, UL 61010-2-201 Applications Maintenance-free capacitive UPS to secure the power supply during short power interruptions.
