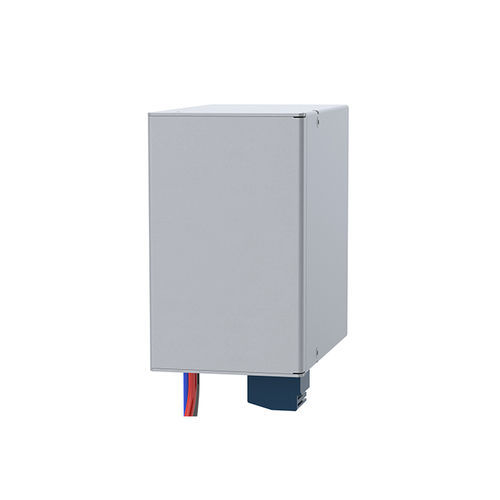

Module capacitor PC-0424-115-0

Protection index IP 20 Rated voltage 24 Vdc Charging current max. 3 A Ambient temperature -13 °F / -25 °C to +158 °F / +70 °C Benefits Extension of the buffer time of PC-0424-017-0 and PC-0424-050-0 Very long buffer times achievable Automatic addressing Communication through system bus cable 3 years warranty Standards Safety: IEC 61010 (SELV) (PELV) EMC: EN 61000-6-3 (Interference emissions), EN 61000-6-2 (Interference immunity) Applications In conjunction with the base module, the output current can be increased to 40A. By using the capacity module, the buffer time can be increased.
