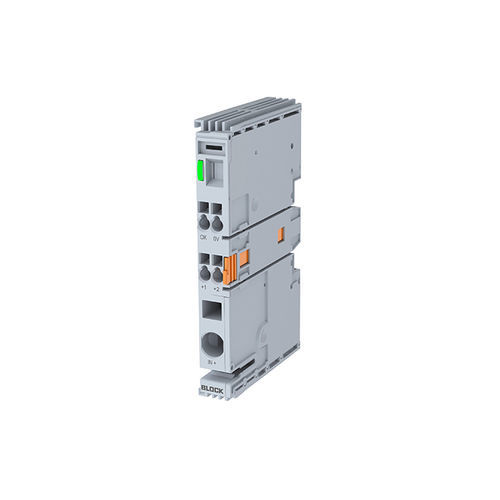

Thermal-magnetic circuit breaker EB-2724-010-0

EMCautomatic

Ambient temperature -13 °F / -25 °C to +158 °F / 70 °C Protection index IP 20 Efficiency 99 % Multi-coloured LED and status display button Up to 40 fuse channels stackable side by side Thermomagnetic characteristic Collective notification signal or single notification signal Benefits 3 years warranty Additional load outputs through output expanders mountable sidewise Automatic channel assignment Optional undervoltage shutdown in combined network Standards Safety: EN 60950-1, EN 50178, EN/IEC 60204-1 EMC: EN 61000-6-2 (interference immunity), EN 61000-6-3 (emitted interference) CE: Acc. to 2014/30/EU Approvals UL 508, UL 2367, DNV GL Applications Electronic circuit breaker with thermomagnetic characteristic with alarm signal forwarded for tripped and switched off channels to the connected channels.
